Wenfei's ordinary high-voltage transformers deliver reliable power conversion for industrial facilities, substations, and infrastructure projects--engineered for durability and efficiency across 40+ countries.
Why Choose Ordinary HV?
Essential for power distribution, industrial facilities, and medium-voltage applications
Reliable Conversion
Fixed-ratio voltage transformation with proven oil-immersed or dry-type designs for stable power distribution
Wide Voltage Range
6kV to 35kV primary voltage ratings, supporting industrial substations, factories, and infrastructure projects
High Efficiency
≥98% full-load efficiency with CRGO steel core, minimizing energy loss and reducing operational costs
Low Maintenance
Simple fixed-tap design with 5-year maintenance intervals, reducing downtime and long-term operating expenses
Our Ordinary HV Product Line
Comprehensive range for substations, industrial power, and distribution networks

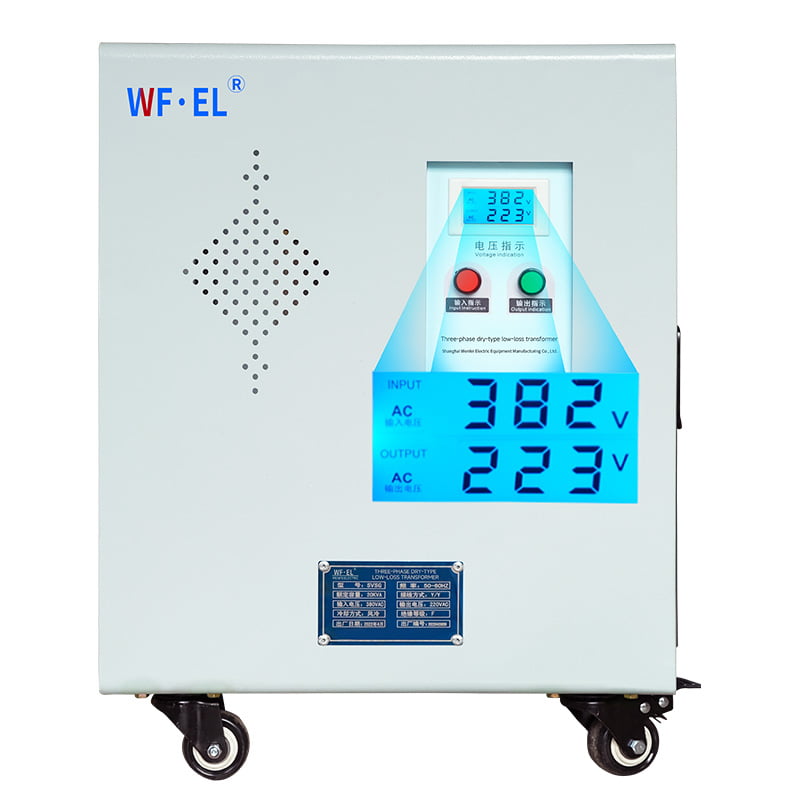

Industrial 380V to 220V Voltage Stabilizer | 500KVA SBW Series 3 Phase to Single Phase Converter with Casters

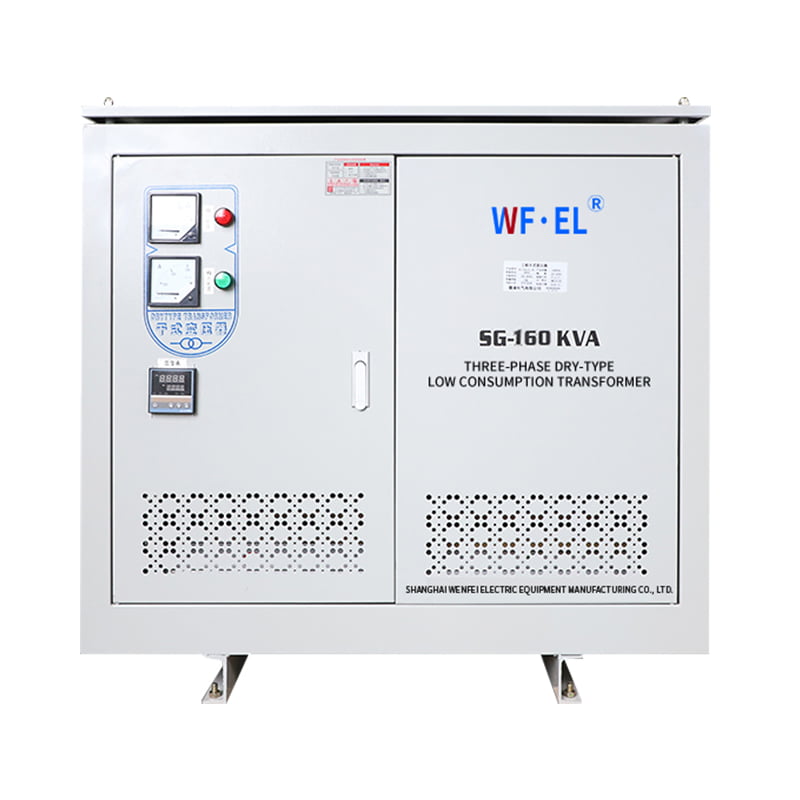

SG-160KVA Three Phase Dry Type Transformer | Low Loss Industrial Power Transformer 380V
Technical Comparison
Choose the right transformer based on your power distribution needs
| Specification | Ordinary HV | Dry-Type | HV Regulating | Voltage Stabilizer |
|---|---|---|---|---|
| Voltage Regulation | Fixed ratio | Fixed ratio | ±10% adjustable | ±15% auto |
| Voltage Range | 6 - 35 kV | 0.4 - 10 kV | 6 - 35 kV | 0.22 - 10 kV |
| Insulation Type | Oil-immersed | Epoxy resin | Oil-immersed | Various |
| Efficiency (Full Load) | 98.5% - 99.0% | 98.0% | 98.0% | 97.5% |
| Protection Grade | IP23 - IP54 | IP20 - IP23 | IP23 - IP54 | IP20 - IP23 |
| Maintenance Interval | 5 years | 5+ years | 2-3 years | 1-2 years |
| Installation Cost | Low | Medium | High | Medium |
| Fire Resistance | Standard | Excellent | Standard | Good |
| Best For | Substations, Industry | Buildings, Indoor | Grid regulation | Factories, Buildings |
Technical Specifications
Key features of Wenfei ordinary high-voltage transformers

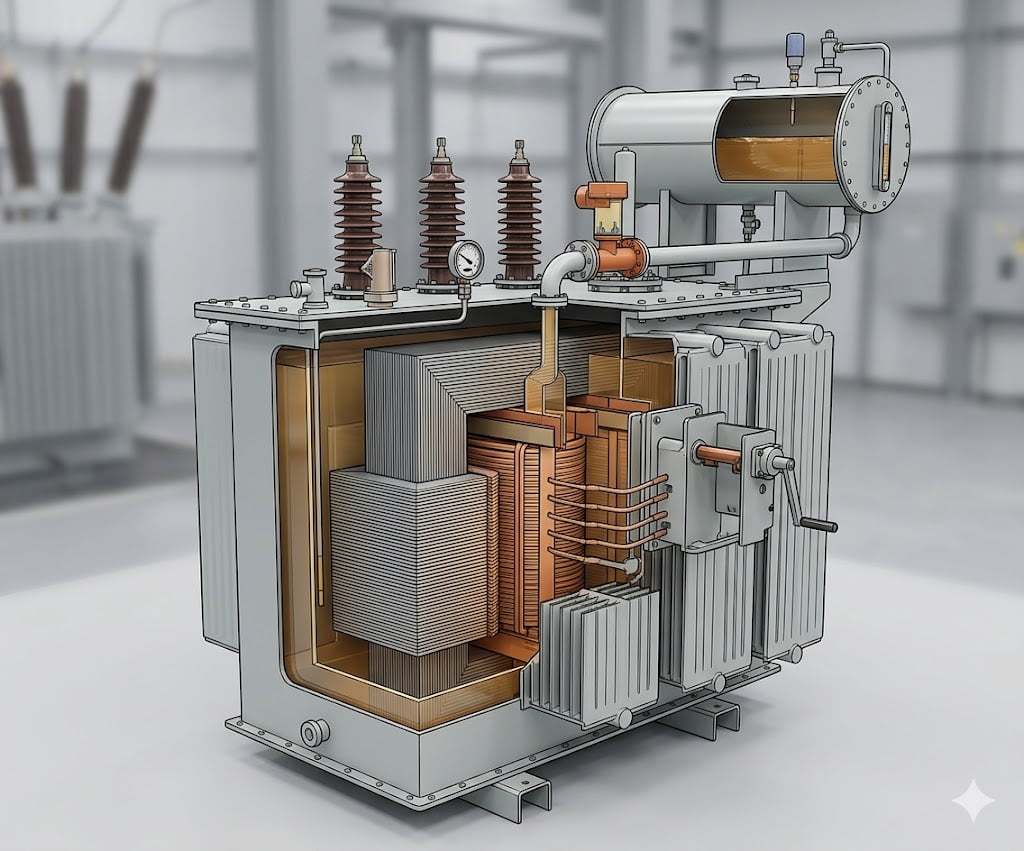

CRGO Steel Core
Cold-rolled grain-oriented silicon steel core with step-lap or mitred joints, minimizing no-load loss and magnetizing current
Oil-Immersed Insulation
Class A mineral oil with BIL 95-200 kV impulse withstand, sealed conservator tank with nitrogen blanket for outdoor durability
Fixed Tap Design
Off-circuit tap changer (±5% typical) for voltage adjustment during maintenance, ensuring simple operation and long service life
Protection Features
Built-in Buchholz relay, pressure relief valve, temperature sensors, and oil level gauge for comprehensive fault detection
Ideal Applications
Where ordinary high-voltage transformers excel
Distribution Substations
Step-down transformers for 35kV/10kV or 10kV/0.4kV distribution networks serving industrial parks and urban areas
Industrial Facilities
Factories, steel mills, chemical plants--providing reliable power conversion for heavy machinery and production lines
Infrastructure Projects
Rail transit, tunnels, mining operations--outdoor-rated transformers for harsh environments and continuous duty
Ordinary High-Voltage Transformer FAQ
Expert answers to common ordinary high-voltage transformer questions
What are the typical applications for ordinary high-voltage transformers?
Common Applications:
- Power Distribution: Substations, utility networks, regional grid distribution (10kV-110kV)
- Industrial Plants: Large manufacturing facilities, steel mills, chemical plants (35kV-66kV)
- Mining Operations: Underground mines, surface extraction, processing facilities (6kV-35kV)
- Infrastructure: Railway electrification, metro systems, tunnels, airports (10kV-35kV)
- Renewable Energy: Wind farms, solar parks, hydroelectric stations (10kV-35kV)
- Commercial Complexes: Large shopping centers, business districts, data centers (10kV-20kV)
💡 Tip: Ordinary high-voltage transformers handle voltages from 6kV to 110kV, serving as the backbone of regional power distribution networks and large industrial power supply systems.
How do I select the right capacity for an ordinary high-voltage transformer?
Selection Criteria:
- Calculate System Load: Sum all connected loads including motors, lighting, HVAC, and process equipment
- Apply Demand Factor: Multiply by 0.7-0.9 based on load diversity and simultaneity
- Add Growth Margin: Include 20-30% capacity for future expansion and load growth
- Consider N-1 Redundancy: For critical facilities, each transformer should handle full load independently
Standard Capacity Ranges:
- • 630-1600 kVA: Small industrial facilities, commercial buildings (10kV)
- • 2000-6300 kVA: Medium factories, industrial parks, large commercial complexes (10kV-35kV)
- • 8000-16000 kVA: Large industrial plants, regional substations (35kV-66kV)
- • 20000-63000 kVA: Major substations, utility distribution networks (66kV-110kV)
- • 80000 kVA+: Primary substations, grid interconnection points (110kV)
⚡ Note: For industrial applications with heavy motor loads or frequent starting, add 30-40% extra capacity. Contact Wenfei for detailed load analysis and impedance matching recommendations.
What voltage classes and insulation levels are available?
10kV Class (Most Common)
- • Rated Voltage: 6kV, 10kV, 11kV
- • BIL (Basic Impulse Level): 75 kV for 10kV systems
- • Applications: Urban distribution, industrial plants, commercial facilities
- • Standard Ratios: 10/0.4kV, 10/6.3kV, 10/10kV (auto-transformer)
- • Advantages: Most economical, widely standardized, extensive spare parts availability
35kV Class
- • Rated Voltage: 20kV, 33kV, 35kV
- • BIL: 170 kV for 35kV systems
- • Applications: Substation step-down, large industrial loads, rural distribution
- • Standard Ratios: 35/10kV, 35/6kV, 35/0.4kV
- • Advantages: Lower transmission losses, suitable for medium-distance distribution
66kV and 110kV Class
- • Rated Voltage: 66kV, 110kV
- • BIL: 325 kV (66kV), 550 kV (110kV)
- • Applications: Regional substations, grid interconnection, bulk power transfer
- • Standard Ratios: 110/35kV, 110/10kV, 66/10kV
- • Features: On-load tap changer (OLTC), oil-immersed design, outdoor installation
Insulation Coordination Standards:
- IEC 60076: International standard for power transformers
- GB 1094: Chinese national standard for power transformers
- IEEE C57: North American transformer standards
- Temperature rise limits: Class A (65K), Class B (80K), Class F (100K)
🔧 Customization: Wenfei manufactures transformers for all voltage classes from 6kV to 110kV with full compliance to international standards. Custom voltage ratios and special insulation requirements available.
What are the key design features and cooling methods?
Core and Winding Design:
- Core Material: Cold-rolled grain-oriented silicon steel (CRGO), 0.27-0.30mm thickness
- Core Type: Three-limb core for single-phase, five-limb or shell-type for three-phase
- Winding: Copper or aluminum conductor, layer or disc type, Class A insulation paper
- Impedance: Typically 6-8% for distribution, 10-12% for power transformers
- No-Load Loss: <0.15% of rated capacity (Class 10 efficiency per GB/T 20052)
- Load Loss: <1.2% at rated load (Class 10 efficiency)
Cooling Methods (IEC 60076-2):
- ONAN (Oil Natural, Air Natural): Natural oil circulation, natural air cooling, up to 10 MVA
- ONAF (Oil Natural, Air Forced): Natural oil, forced air fans, 10-40 MVA capacity range
- OFAF (Oil Forced, Air Forced): Forced oil pumps + fans, 40+ MVA, highest efficiency
- ODAF (Oil Directed, Air Forced): Directed oil flow through windings, large power transformers
- Temperature Rise: Top oil <60K, winding hot spot <65K (Class A), ambient 40°C max
Protection and Monitoring Features:
- • Buchholz Relay: Gas accumulation and oil surge protection
- • Pressure Relief Device: Prevents tank rupture during internal faults
- • Winding Temperature Indicator: PT100 sensors with alarm/trip contacts
- • Oil Level Gauge: Magnetic float type with remote signaling
- • Tap Changer: Off-load (OLTC) or on-load (OLTC) ±5% voltage regulation in 5 steps
- • Bushing: Porcelain or silicone rubber, oil-to-air or oil-to-oil type
🌳 Innovation: Wenfei offers hermetically sealed transformers with corrugated tanks (no conservator), reducing maintenance and extending oil life to 30+ years. Optional online monitoring systems track temperature, load, and dissolved gas analysis (DGA) in real-time.
What maintenance is required and how to ensure long-term reliability?
Preventive Maintenance Schedule:
- Monthly: Visual inspection (oil leaks, unusual noise, bushing condition), check oil level and silica gel breather
- Quarterly: Infrared thermography, verify cooling system operation, inspect cable terminations and grounding
- Semi-Annual: Oil sampling and dielectric test (≥30 kV breakdown voltage), moisture content (<30 ppm)
- Annual: Dissolved Gas Analysis (DGA), winding resistance measurement, insulation resistance test (≥1000 MΩ)
- Every 2 Years: Tap changer maintenance, contact inspection, operating mechanism lubrication
- Every 5 Years: Comprehensive electrical tests: turns ratio, vector group, impedance, partial discharge, oil regeneration or replacement
- Every 10 Years: Major overhaul with internal inspection, gasket replacement, painting, bushing refurbishment
Critical Monitoring Parameters:
- Oil Quality: Dielectric strength >30kV, acidity <0.1 mgKOH/g, water content <30ppm, interfacial tension >25 mN/m
- DGA Limits (IEEE C57.104): H₂ <100ppm, CH₄ <120ppm, C₂H₂ <35ppm, C₂H₄ <50ppm, CO <570ppm, CO₂ <2500ppm
- Temperature: Top oil <85°C, winding hot spot <98°C during normal operation (Class A insulation)
- Load Management: Avoid continuous operation >100% rated load; short-term overload (1.3x) limited to 30 minutes
- Tap Position: Record and balance usage across taps; uneven wear indicates system voltage issues
Reliability Enhancement Measures:
- • Online Monitoring: IoT sensors for real-time temperature, load, oil quality, and DGA tracking
- • Predictive Maintenance: AI algorithms analyze trends to predict failures 6-12 months in advance
- • Surge Protection: Install surge arresters on HV and LV sides (10kA minimum discharge capacity)
- • Environmental Control: Maintain ambient temperature <40°C, humidity <90%, avoid corrosive atmospheres
- • Spare Parts Inventory: Keep critical components (bushings, gaskets, tap changer contacts) on-site for rapid repair
🔧 Wenfei Support: All ordinary high-voltage transformers include 24-month warranty, lifetime technical support, and optional 5-year comprehensive maintenance contracts. Our transformers achieve 99.7%+ reliability with proper maintenance and 35+ year service life. Emergency repair response within 24 hours across China, 48-72 hours internationally.
Ordinary High-Voltage Transformer
Trends for 2026
Published: January 2026
The Evolution of Ordinary High-Voltage Transformer Technology
The ordinary high-voltage transformer market is experiencing significant expansion in 2026, driven by global infrastructure modernization, utility grid upgrades, and large-scale power transmission projects. As power utilities, industrial complexes, and renewable energy installations require reliable voltage transformation from 10 kV to 220 kV, conventional oil-immersed and dry-type high-voltage transformers remain the backbone of electrical distribution networks, providing proven performance, cost-effective solutions, and long-term reliability for medium to high-power applications across transmission substations, distribution networks, and industrial power systems.
1 Proven Reliability & Cost-Effective Performance
Ordinary high-voltage transformers leverage mature silicon steel core technology, mineral oil or dry-type insulation systems, and standardized manufacturing processes to deliver reliable voltage transformation at competitive costs. With operational lifespans exceeding 30-40 years and minimal maintenance requirements, these transformers offer utilities and industrial operators proven performance with predictable lifecycle costs. By 2026, conventional high-voltage transformers continue to dominate 75% of utility substation installations and 60% of industrial power distribution projects, particularly in developing markets where cost-efficiency and established supply chains are critical decision factors for grid expansion and industrial electrification.
2 Grid Modernization & Infrastructure Upgrades
Aging electrical infrastructure in developed nations and rapid grid expansion in emerging economies are driving sustained demand for ordinary high-voltage transformers. Utilities are replacing 1970s-1990s era units with modern designs featuring improved insulation systems, enhanced short-circuit withstand capability, and compliance with IEC 60076 and IEEE C57 standards. By 2026, grid modernization programs in North America, Europe, and Asia-Pacific are projected to drive replacement of over 45,000 high-voltage transformers annually, with standardized 10-220 kV units representing 80% of procurement volume. These upgrades enhance grid reliability, reduce outage frequency by 35%, and support integration of distributed generation and renewable energy sources.
3 Industrial & Manufacturing Applications
Ordinary high-voltage transformers serve critical roles in heavy industries including steel mills, cement plants, chemical processing facilities, and mining operations requiring step-down transformation from utility transmission voltages (35-110 kV) to distribution levels (6-10 kV) for plant-wide power distribution. These rugged transformers handle continuous high loads, withstand industrial environments with temperature extremes and contamination, and provide reliable service for 25-35 years with routine maintenance. By 2026, industrial high-voltage transformer demand is growing 8% annually, driven by manufacturing expansion in Southeast Asia, infrastructure development in Africa and Latin America, and reshoring of heavy industry in developed economies requiring reliable, cost-effective power infrastructure.
4 Oil-Immersed vs. Dry-Type Technology Evolution
The ordinary high-voltage transformer market continues to balance oil-immersed designs (offering superior cooling and higher power ratings) with dry-type alternatives (providing enhanced safety and reduced environmental impact). Oil-immersed transformers with mineral oil or biodegradable ester fluids dominate outdoor utility installations and high-power applications (>10 MVA), while cast resin and vacuum-impregnated dry-type units gain share in indoor substations, urban environments, and applications with fire safety concerns. By 2026, oil-immersed transformers maintain 70% market share in utility transmission and distribution, while dry-type units capture 55% of indoor industrial installations and 40% of commercial building applications, reflecting growing environmental regulations and safety standards.
5 Standardization & Global Supply Chain Resilience
Ordinary high-voltage transformers benefit from decades of design standardization, established manufacturing processes, and global supply chains for core materials, insulation systems, and bushings. This standardization enables competitive pricing, shorter lead times (12-24 weeks for standard designs vs. 36-52 weeks for custom units), and widespread availability of spare parts and service expertise. By 2026, standardized high-voltage transformer designs conforming to IEC, IEEE, and national standards represent 85% of global shipments, supporting rapid deployment of power infrastructure projects, reducing project costs by 25-35% compared to custom solutions, and ensuring long-term serviceability through established maintenance networks and component interchangeability across manufacturers.
Wenfei's Ordinary High-Voltage Transformer Solutions
Wenfei Electrical's ordinary high-voltage transformer series delivers proven reliability for utility substations, industrial power distribution, and infrastructure projects. Our product range includes oil-immersed and dry-type designs from 10 kV to 35 kV with power ratings from 100 kVA to 20 MVA, featuring silicon steel cores, mineral oil or cast resin insulation, and compliance with IEC 60076 and GB 1094 standards. With robust construction for outdoor and indoor installations, standardized designs for rapid delivery, and comprehensive factory testing including impulse, temperature rise, and short-circuit withstand tests, our transformers serve power utilities, manufacturing facilities, mining operations, and commercial complexes across 60+ countries with over 200,000 units in reliable service.
Explore Our High-Voltage Transformer SeriesWant to stay updated on high-voltage transformer trends and Wenfei innovations?
