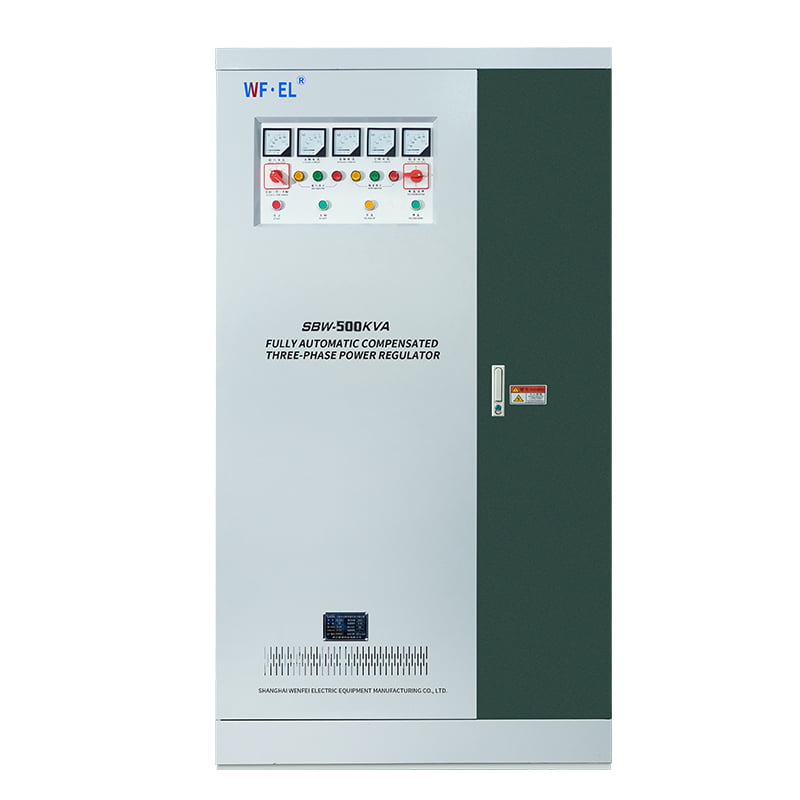

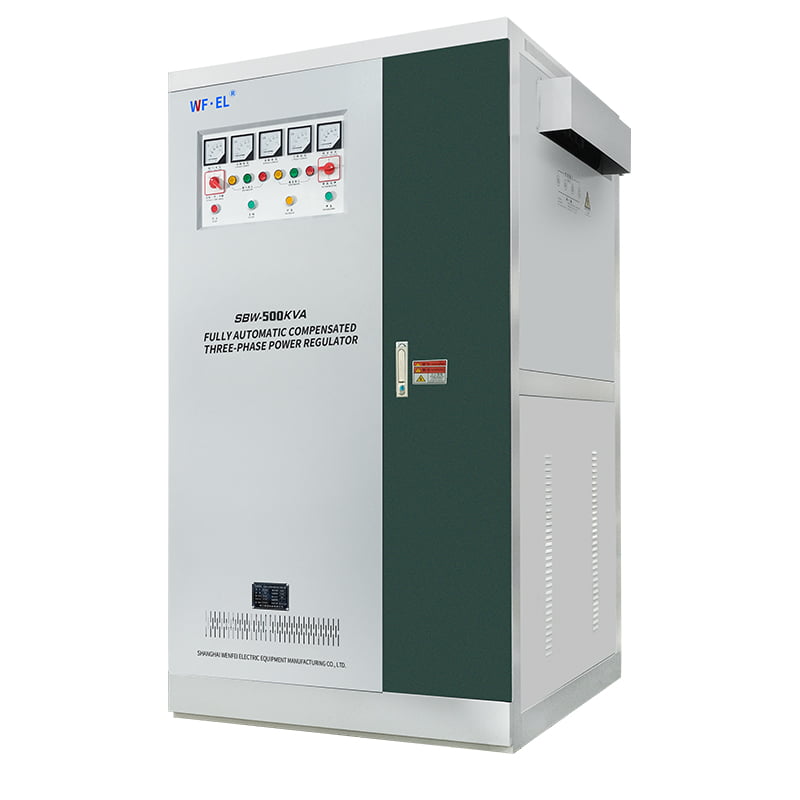

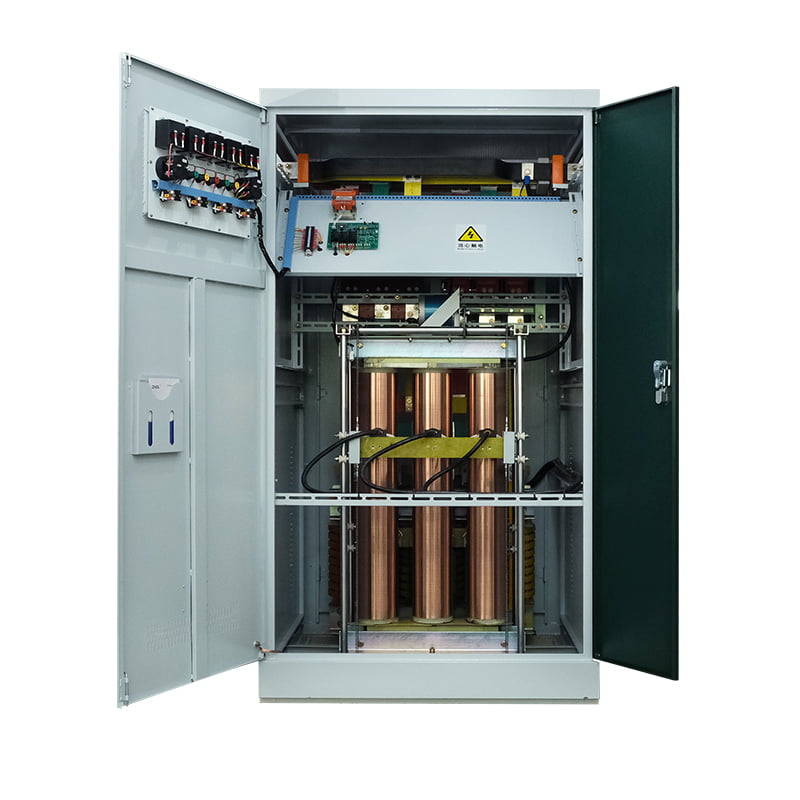

The SBW-500KVA stabilizer consists of four key components: compensation transformer, contact voltage regulator, servo control system, and carbon brush transmission mechanism.
When voltage fluctuations occur, the sampling system detects deviations in real time and activates the servo motor to adjust the carbon brush position along the winding. This dynamic compensation process ensures precise voltage stabilization with a response time of ≤1.5 seconds and accuracy within ±3%.
Key Advantages
- Ultra-High Power Capacity: 500KVA supports entire production lines or factory-level power stabilization
- Wide Voltage Range: Performs reliably in unstable grids and extreme conditions

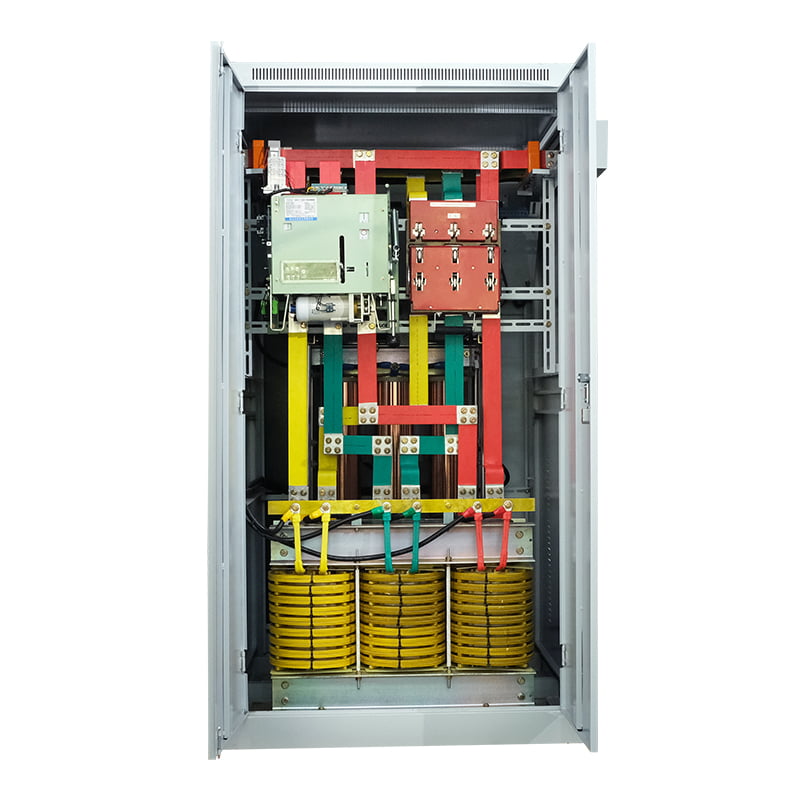

- 100% Copper Construction: Low resistance, better heat dissipation, long service life (10+ years)
- Comprehensive Protection System: Prevents damage to CNC machines, lasers, and motors
- Visual Monitoring System: Real-time voltage and current display for easy management
Applications
- Industrial manufacturing: CNC machines, injection molding, stamping equipment, automation lines
- Infrastructure: hospitals, data centers, airports, railway systems
- Unstable power environments: voltage drops, peak load conditions
- Renewable energy systems: solar plants, energy storage systems
Selection & Installation Tips
- Capacity Selection: Choose based on total load, with 20–30% margin recommended
- Installation: Must be installed by certified electricians, ensure proper grounding
- Maintenance: Regular inspection of terminals, cooling system, and insulation every 6 months
