Product Overview
WF·EL TNS-Z-20KVA is a high-efficiency three-phase intelligent high-precision fully automatic AC voltage regulator, specially designed for 380V/50Hz industrial power grid. It adopts advanced servo motor automatic compensation voltage regulation technology, real-time monitors A/B/C three-phase voltage, current and frequency through high-definition color LCD display, automatically compensates grid voltage fluctuation and three-phase unbalance problems.
With full copper winding coil, low power loss, high efficiency ≥98%, and complete overvoltage, undervoltage, overload, short circuit, phase loss protection functions. It supports 24 hours a day, 7 days a week continuous industrial operation, effectively protecting CNC machine tools, laser cutting machines, injection molding machines and other precision industrial equipment from unstable power supply damage.
Core Advantages
- Three-phase separate independent voltage regulation, high precision stable output 380V, accuracy ±1%~±3%

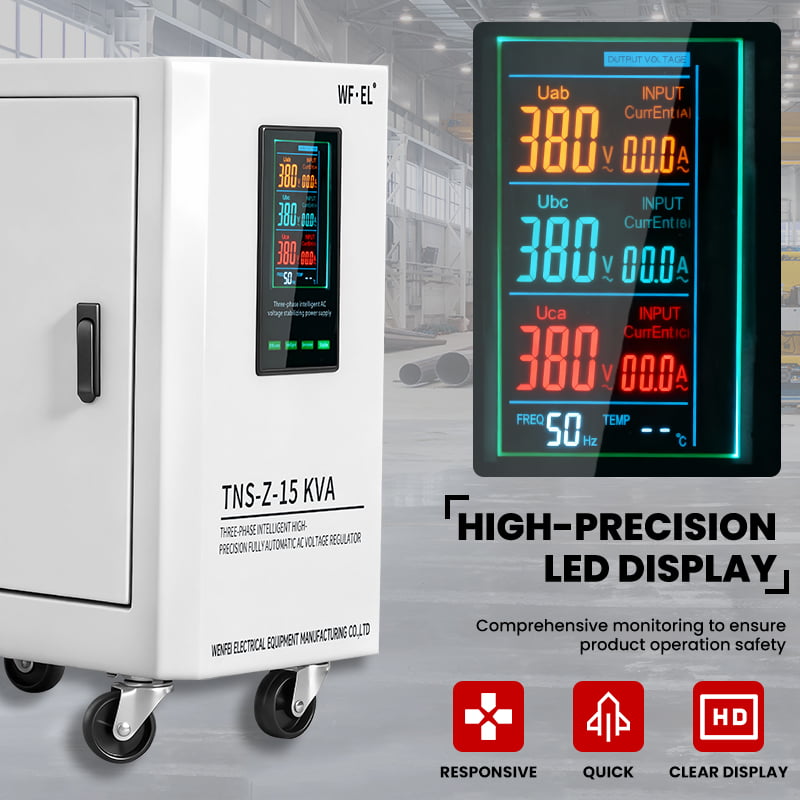

- Color LCD digital display, real-time monitoring three-phase voltage, current, frequency and operating status
- High purity full copper coil winding, low heat generation, high efficiency, long service life
- Complete intelligent safety protection system, automatic cut-off output under abnormal conditions
- Mobile caster design, flexible installation and movement in workshop
- Fast response speed ≤0.5s, no waveform distortion, no harmonic pollution
Technical Parameters
| Item | Specification |
|---|---|
| Model | TNS-Z-20KVA |
| Rated Capacity | 20KVA |
| Phase System | Three-phase four-wire |
| Rated Frequency | 50Hz |
| Input Voltage Range | 260V~430V |
| Rated Output Voltage | AC380V |
| Voltage Regulation Precision | ±1%~±3% |
| Regulation Method | Servo Motor Fully Automatic Compensation Type |
| Response Time | ≤0.5s |
| Whole Machine Efficiency | ≥98% |
| Coil Material | High Purity Pure Copper |
| Protection Functions | Overvoltage, Undervoltage, Overload, Short Circuit, Phase Loss Protection |
| Working Mode | 24/7 Continuous Industrial Operation |
Application Scenarios
CNC machine tools, laser cutting equipment, injection molding machines, printing machinery, automated production lines, laboratory precision instruments, industrial workshop distribution systems, medical precision equipment.
