Core Product Advantages (For Website Display):
Three-Phase Independent Voltage Regulation

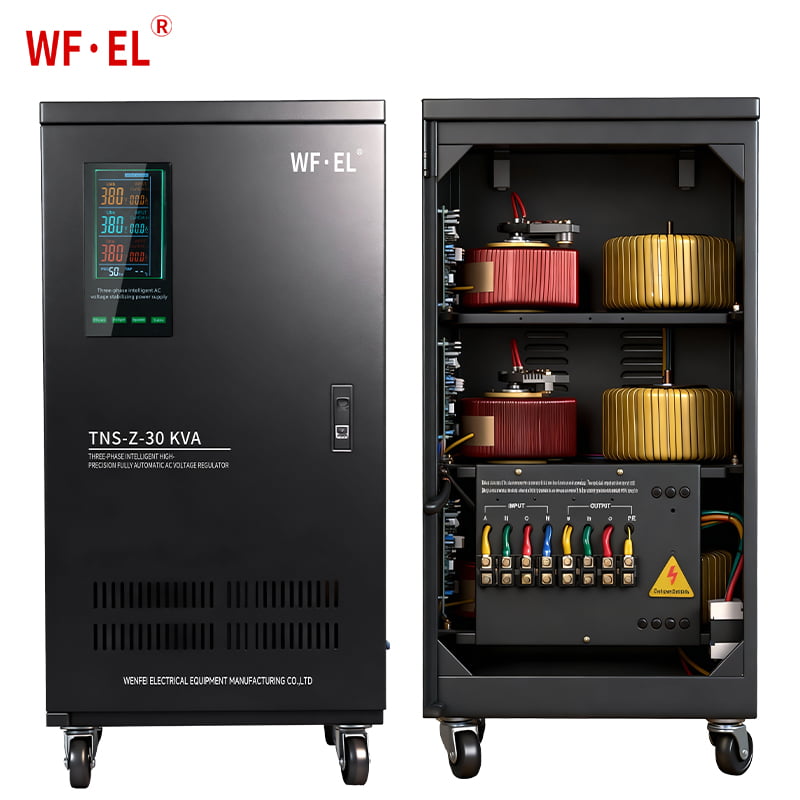

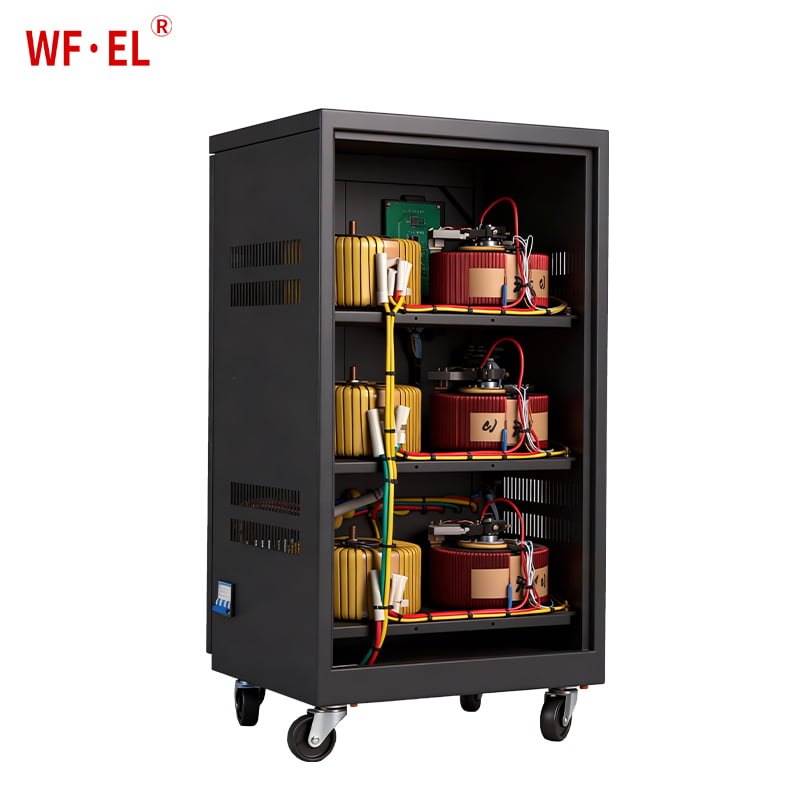

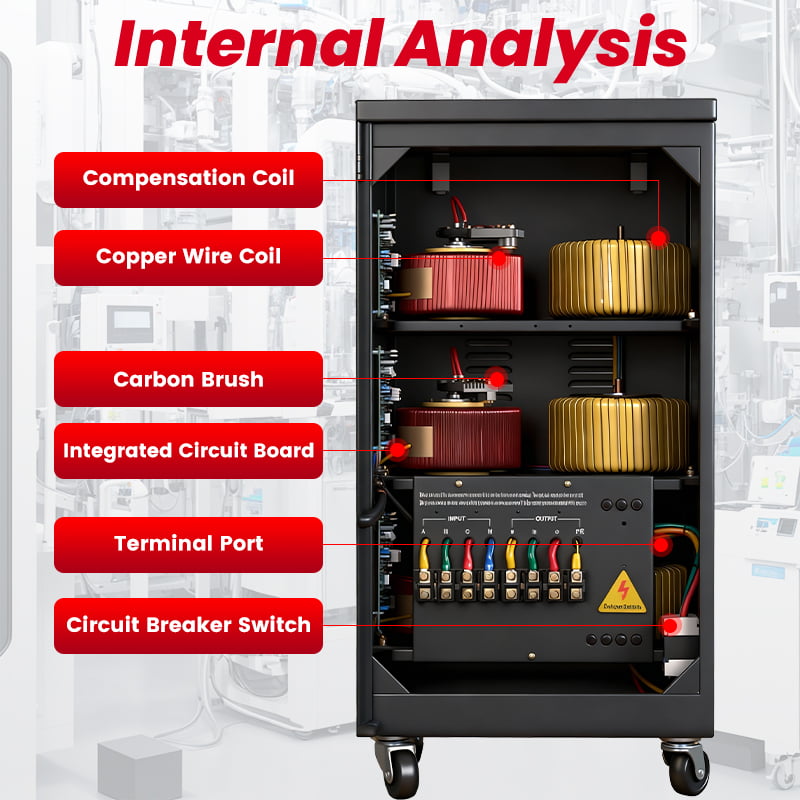

The TNS-Z-30KVA AVR features three independent voltage regulation units that can correct phase voltage imbalances, effectively addressing common industrial power grid issues such as voltage instability and imbalance. The stabilization accuracy is ±1%, providing a stable and pure output.
Intelligent LCD Monitoring

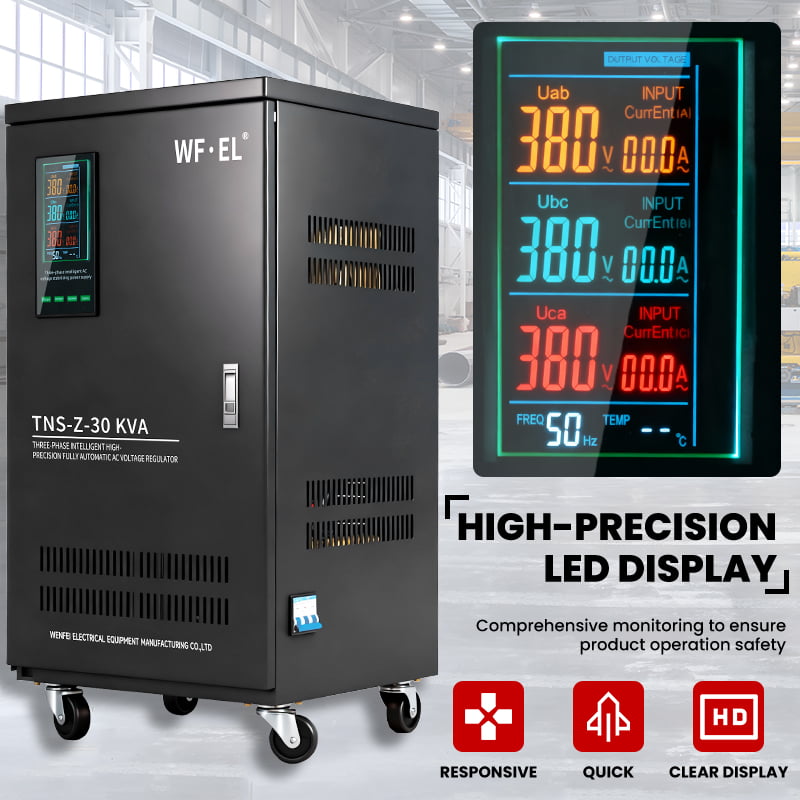

The high-definition LCD display provides real-time visibility of A/B/C three-phase input/output voltage, current, and frequency. In case of any faults, the device automatically triggers an alarm and displays the fault information, making operations and maintenance management straightforward and efficient.
Full Copper Industrial Materials

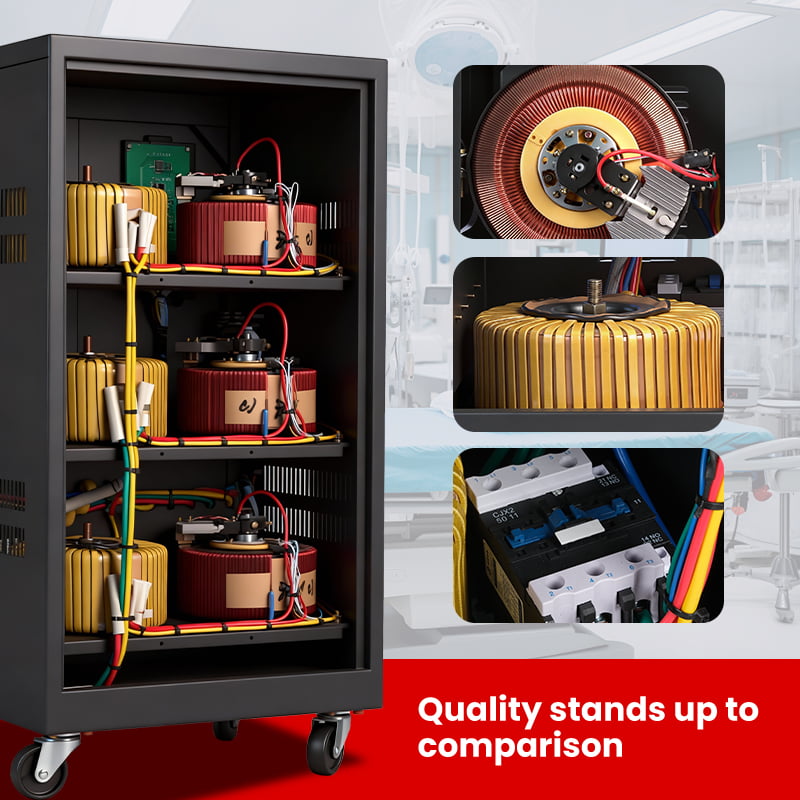

The AVR utilizes high-purity copper coil windings, which have higher conductivity, lower heat generation, and better overload resistance compared to aluminum coil models. The system operates with an efficiency of ≥98%, ensuring long-term industrial-grade continuous operation and an extended service life.
Multiple Safety Protections
The TNS-Z-30KVA includes overvoltage, undervoltage, overload, short-circuit, phase loss, and overheat protections. The device automatically disconnects the output when any abnormal condition occurs, preventing damage to downstream equipment.
Portable and Easy to Install

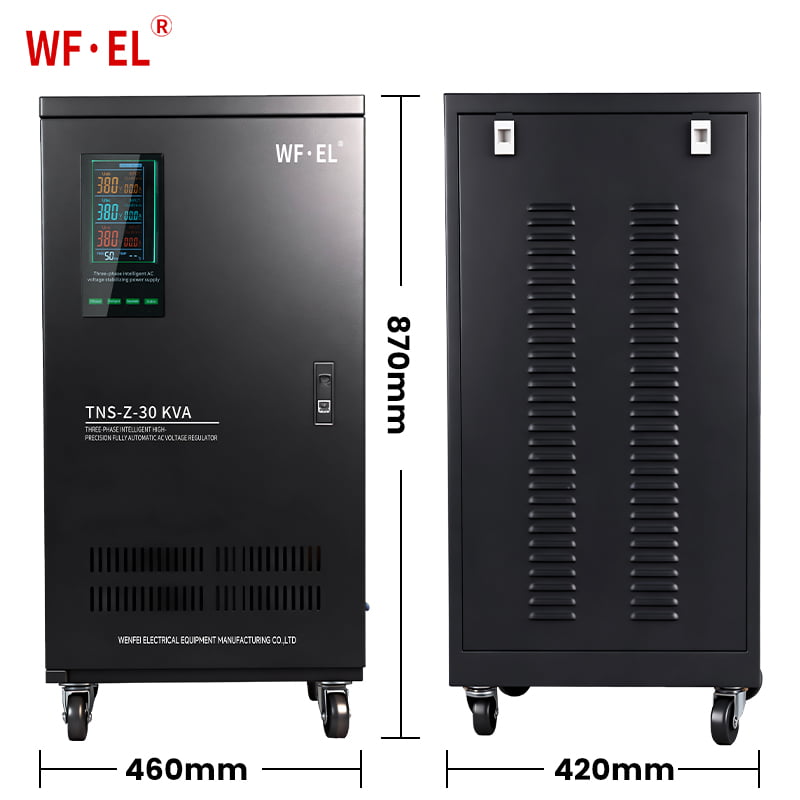

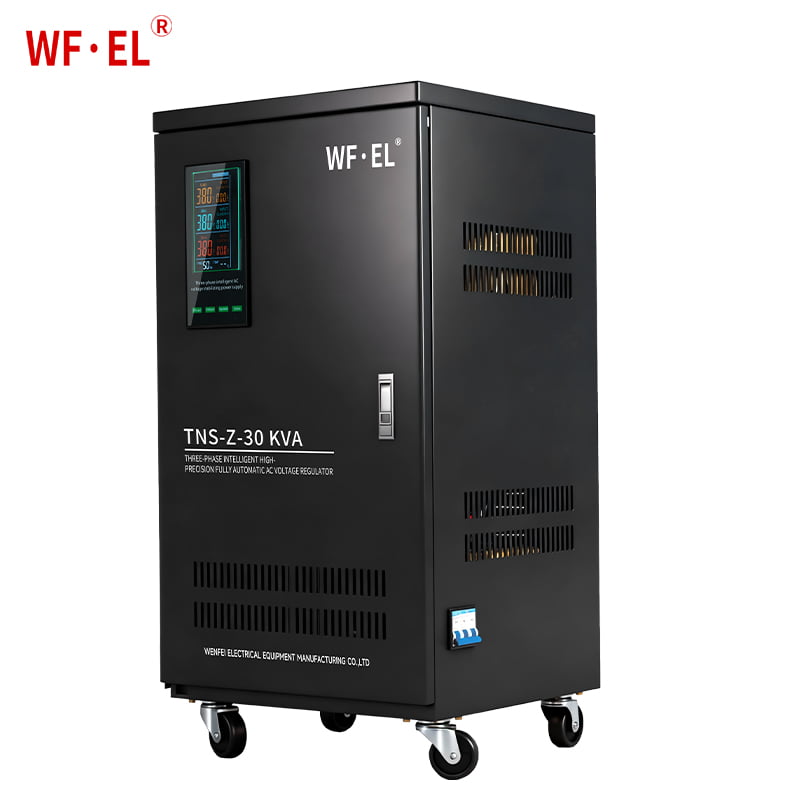

The vertical cabinet design features universal wheels for easy movement and deployment within the workshop. The three-phase four-wire system connection design is compatible with most industrial power distribution environments.
Technical Specifications Table (For Website Display):
| Item | Specification |
|---|---|
| Model | TNS-Z-30KVA |
| Rated Capacity | 30kVA |
| Phase/Mode | Three-phase four-wire, AC380V/50Hz |
| Input Voltage Range | 260V~430V (Customizable wide range) |
| Output Voltage | AC380V, Voltage Stabilization Accuracy ±1% |
| Voltage Regulation | Servo motor automatic compensation |
| Response Time | ≤0.5s |
| Efficiency | ≥98% |
| Waveform Distortion | ≤1% |
| Coil Material | High-purity copper |
| Protection Features | Overvoltage / Undervoltage / Overload / Short-circuit / Phase Loss / Overheat Protection |
| Display | Color LCD three-phase independent digital display |
| Working Mode | Industrial-grade 7×24 hour continuous operation |
Typical Application Scenarios:
Industrial Production
CNC machines, laser cutting machines, injection molding machines, printing equipment, automation production lines, air compressors, etc. Solve issues like decreased processing accuracy, machine downtime, and motherboard burnouts caused by unstable voltage.
Precision Instrumentation
Laboratory testing equipment, scientific research instruments, medical imaging devices, industrial control systems. Prevent voltage fluctuations from affecting data accuracy and equipment stability.
Commercial and Building Power Distribution
Large building power distribution, central air conditioning systems, elevators, data server rooms. Ensure stable three-phase power supply to reduce the risk of failures caused by grid fluctuations.
Special Working Conditions
Remote factory areas, temporary construction site power distribution, agricultural processing equipment. Suitable for environments with significant voltage fluctuations and non-standard power grids.
