High-Voltage Transformers

110kV transformers are typically used in regional transmission and large industrial distribution networks. Capacity range 10-63MVA, suitable for stepping down from transmission voltage to sub-transmission (35kV) or distribution (10kV) levels. Applications include utility substations, industrial plants, mining operations, and renewable energy integration. Two-winding design common, OLTC standard, BIL 550kV. 220kV transformers serve extra-high-voltage transmission networks connecting generation plants to regional grids. Capacity range 40-120MVA+, often three-winding design (HV/MV/LV) to supply multiple voltage levels. Features forced oil circulation cooling (OFAF), vacuum OLTC, advanced monitoring (online DGA, partial discharge, thermal imaging), BIL 1050kV. Higher efficiency (>99.7%), longer service life (35+ years), more complex protection schemes. Selection depends on system voltage, power transfer capacity, load characteristics, and grid integration requirements. 220kV units require larger installation footprint, specialized transportation (oversized load permits), and more extensive commissioning procedures including impulse testing and load loss verification.

OLTC allows voltage adjustment under load without interrupting power supply--critical for maintaining stable grid voltage despite load variations and transmission line voltage drops. Mechanism: Selector switches connect to different tap positions on HV winding. Diverter switches transfer load current between taps using transition resistors or reactors to prevent arcing. Typical range ±10% to ±16% in steps of 1.25% or 2.5% (17 or 33 positions). Vacuum OLTC (modern): Contacts operate in vacuum, eliminating oil contamination, extending maintenance intervals to 500,000 operations vs 150,000 for oil-immersed types. Motor drive mechanism responds to automatic voltage regulator (AVR) or manual control. Operation time 3-10 seconds per step. Benefits: Compensates for voltage drop in long transmission lines (voltage regulation within ±2.5%). Maintains optimal voltage for load equipment efficiency. Enables load sharing in parallel transformer operation. Supports grid stability during load fluctuations and renewable energy integration. Essential for: Utility substations serving large geographic areas. Industrial facilities with varying loads. Renewable energy projects (solar/wind voltage fluctuations). Long-distance transmission lines. Maintenance: Vacuum OLTC requires inspection every 5 years, contact replacement at rated operations. Oil-immersed OLTC needs oil filtration annually, contact inspection every 2-3 years. Monitor operation counters, acoustic emission (arcing detection), contact resistance. Failure modes: Worn contacts cause arcing and oil carbonization. Mechanical binding prevents tap change. Control circuit faults cause incorrect positioning. Always specify OLTC for HV transformers in utility and industrial applications--voltage regulation is fundamental to power quality and equipment protection.

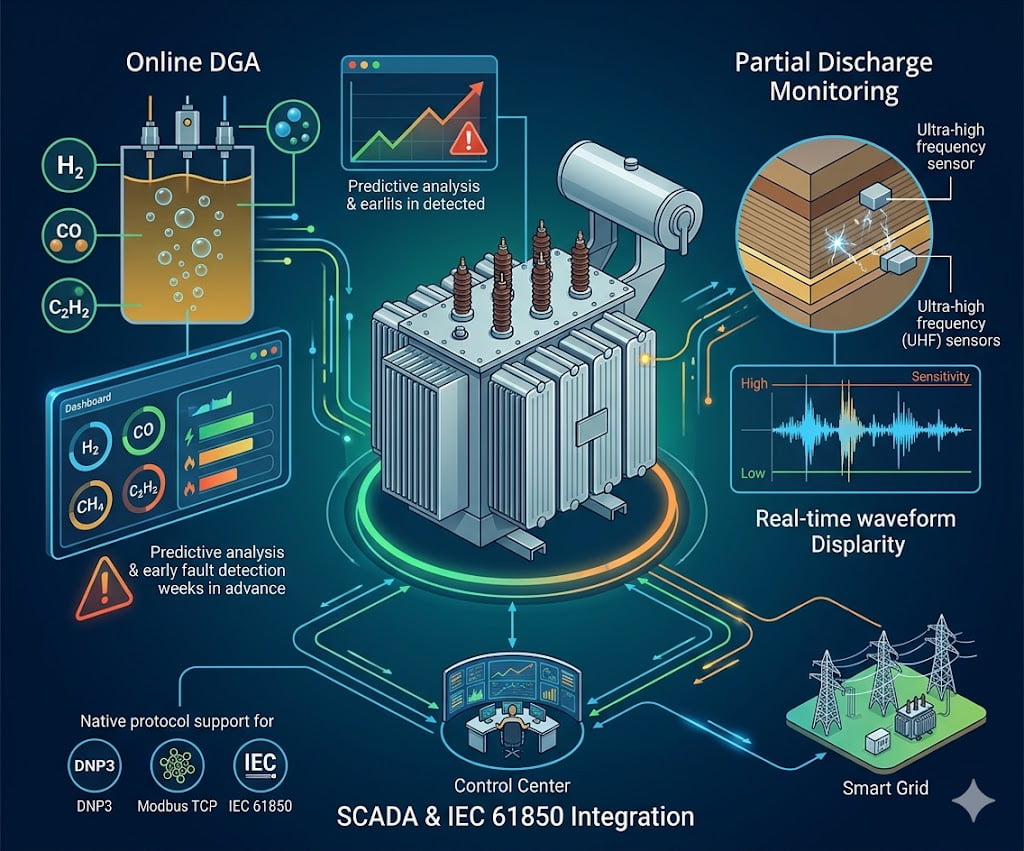

DGA analyzes gases dissolved in transformer oil to detect incipient faults before catastrophic failure. Internal faults decompose oil and cellulose insulation, generating characteristic gas signatures. Key gases monitored: Hydrogen (H₂): Corona discharge, partial discharge in oil. Methane (CH₄): Low-temperature thermal fault (150-300°C). Ethane (C₂H₆): Moderate thermal fault (300-700°C). Ethylene (C₂H₄): High-temperature thermal fault (>700°C). Acetylene (C₂H₂): Arcing, high-energy discharge. Carbon monoxide (CO) / Carbon dioxide (CO₂): Cellulose (paper insulation) degradation. Fault interpretation methods: Rogers Ratio Method: Calculates ratios (C₂H₂/C₂H₄, CH₄/H₂, C₂H₄/C₂H₆) to classify fault type. Duval Triangle: Plots %CH₄, %C₂H₄, %C₂H₂ on triangular diagram to identify thermal faults, partial discharge, arcing. IEC 60599 standards: Defines gas concentration limits and trending analysis. Typical faults detected: Partial discharge: Elevated H₂ (>100 ppm), normal hydrocarbons. Indicates deteriorating insulation, moisture ingress, loose connections. Thermal overheating: Rising CH₄, C₂H₄, C₂H₆. Caused by core hot spots, circulating currents, blocked cooling. Arcing: High C₂H₂ (>5 ppm). Indicates tap changer faults, bushing flashover, winding short-circuit. Cellulose degradation: Increasing CO/CO₂ ratio. Overheating of paper insulation, moisture contamination. Sampling frequency: Quarterly for new transformers (<5 years). Annually for established units. Monthly if abnormal trends detected. Online DGA systems: Continuous monitoring with real-time alarming. Detects rapid fault development (hours vs months). Recommended for critical transformers (>50MVA, 220kV class). Action levels: Caution: 2-3× normal gas levels--increase monitoring frequency. Alert: 5-10× normal--schedule outage for internal inspection. Emergency: >10× or rapid rise--immediate load reduction or shutdown. DGA is the most effective predictive maintenance tool for HV transformers--early fault detection prevents 80-90% of catastrophic failures. Always perform baseline DGA after commissioning and maintain historical trending database.

Comprehensive protection for HV transformers (multi-layer defense): Primary protection (internal faults): Differential protection (87T): Compares HV and LV currents using CTs on both sides. Trips instantly on internal faults (winding short-circuit, core faults). Percentage bias characteristic compensates for magnetizing inrush and CT errors. Settings: Minimum pickup 10-20% rated current, slope 15-40%. Trip time <50ms. Buchholz relay (63): Gas-actuated relay in conservator pipe. Detects internal faults via gas accumulation (slow) or oil surge (rapid). Alarm on 50-100cm³ gas, trip on 150-300cm³ or sudden pressure. Essential for all oil-immersed transformers. Pressure relief device (20): Mechanical valve opens at 0.5-0.7 bar overpressure to prevent tank rupture. Indicates severe internal fault. Backup protection (external faults, overload): Overcurrent protection (51): Time-delayed overcurrent relay on HV and LV sides. Coordinates with downstream protection. Settings: 125-150% rated current, time delay 0.5-2 seconds. Earth fault protection (51N): Sensitive ground fault detection using residual CT or core-balance CT. Settings: 10-40% rated current (HV side), 5-20% (LV side). Restricted earth fault (REF, 64): High-sensitivity protection for internal ground faults. Zero-sequence current measured across neutral CT and line CTs. Trips on internal ground faults, blocks for external faults. Thermal protection: Winding temperature indicator (WTI): RTD embedded in HV winding hotspot. Alarm at 95°C, trip at 105-110°C. Oil temperature indicator (OTI): Measures top oil temperature. Alarm at 85°C, trip at 95°C. Overload protection: Thermal image relay calculates winding temperature based on load current and ambient temperature. Prevents insulation aging from overload. Auxiliary protection: Sudden pressure relay (SPR): Detects rapid pressure rise from internal arcing. Faster than Buchholz relay (10-30ms). Trip function. Oil level monitoring: Low oil alarm prevents cooling degradation and bushing exposure. Cooling system failure: Monitors pump/fan operation, flow switches, temperature rise. Alarm/trip on cooling failure. Bushing monitoring: Current transformers on bushings detect internal faults. Capacitance/tan delta monitoring for bushing degradation. Lightning protection: Surge arresters on HV and LV terminals. Class I arresters for 110kV (MCOV 88kV), Class II for 220kV (MCOV 176kV). Protection coordination: Differential and Buchholz provide primary protection--instantaneous trip for internal faults. Overcurrent and earth fault provide backup--coordinate with upstream/downstream devices using time-current curves. Thermal protection prevents overload damage--allows temporary overload per loading guides (IEEE C57.91). SCADA integration: All protection relays interface to substation automation system. Remote monitoring, event recording, sequence of events analysis. Critical for >50MVA transformers. Testing: Commission all protection systems with secondary injection testing. Verify CT ratios, polarity, relay settings, trip circuit continuity. Annual functional testing of Buchholz, pressure relief, temperature devices. Proper protection design prevents 95% of transformer failures from escalating to catastrophic damage--protection investment is 2-5% of transformer cost but saves millions in replacement and downtime costs.

Short-circuit currents generate enormous electromagnetic forces that can crush windings, deform core, or rupture tank if mechanical design is inadequate. Calculation: Symmetrical short-circuit current (Isc) = Rated current ÷ (Impedance % ÷ 100). Example: 50MVA, 110kV transformer (rated current 262A), impedance 10.5%. Isc = 262 ÷ 0.105 = 2,495A (symmetrical). Peak asymmetric current = Isc × 2.55 (includes DC component) = 6,362A. This is the mechanical design basis. Forces on windings: Radial forces (compression/tension): F_radial = k × I² × (flux linkage between windings). Compressive on inner winding, tensile on outer winding. Tensile stress must not exceed copper/aluminum yield strength (70-100 MPa). Axial forces (vertical compression): F_axial = k × I² × (axial leakage flux). Compresses winding height. Causes buckling if inadequate axial support. Design countermeasures: Winding mechanical strength: Continuous disc winding (HV) provides superior mechanical strength vs layer winding. Radial spacers every 5-10 discs prevent buckling. End support rings withstand axial compression. Conductor transposition reduces circulating currents and hot spots. Winding clamping: Rigid clamping structure (steel channels, pressing plates) compresses winding stack to 80-90% of free height. Prevents axial movement during short-circuit. Retighten after initial energization (thermal settling). Core construction: Step-lap or mitred joints with mechanical clamping prevent core movement. Core ground connection prevents circulating currents. Tank and structural supports: Reinforced tank walls and base withstand electromagnetic forces transmitted through windings. Seismic bracing for high-risk zones (additional lateral support). Testing verification: Short-circuit withstand test (type test per IEC 60076-5): Apply 25 cycles of rated short-circuit current. Measure winding resistance, capacitance, frequency response before/after test. Change <2% indicates adequate mechanical strength. Impulse test: Verifies insulation and mechanical integrity under lightning impulse (BIL level). Detects winding deformation or insulation breakdown. Frequency response analysis (FRA): Compares winding impedance vs frequency before/after short-circuit events. Detects winding deformation, displacement, or conductor breakage. Maintenance monitoring: Perform FRA after any through-fault event (fault current >50% of rated short-circuit current). Compare to baseline fingerprint--deviations indicate mechanical damage requiring internal inspection. Monitor short-circuit current magnitude and duration--cumulative damage accelerates with repeated faults. Design margins: Specify impedance 10-12% for HV transformers to limit fault current. Higher impedance reduces short-circuit forces but increases voltage regulation--balance based on system fault level. Verify available fault current at installation site--if system fault level exceeds transformer rating, install current-limiting reactors or use higher impedance design. Mechanical failure modes: Winding collapse: Radial forces exceed conductor strength--inner winding buckles inward. Axial buckling: Inadequate clamping allows winding to telescope or tilt. Conductor breakage: Repeated short-circuits cause fatigue cracks at solder joints or transposition points. Lead deformation: Bushing leads bend or break from electromagnetic forces. Proper mechanical design with verified short-circuit withstand capability is critical--mechanical failures are catastrophic and non-repairable. Always request type test reports demonstrating short-circuit withstand for specified fault level.

Preventive maintenance program for HV transformers: Monthly: Visual inspection--oil leaks, bushing cracks, unusual noise, cooling system operation. Check oil level, silica gel breather condition (replace when saturated pink). Verify operation of all gauges and indicators. Quarterly: Infrared thermography--scan bushings, connections, tank surface for hot spots (>10°C above ambient indicates problems). Record load current, voltages, temperatures--establish trending database. Oil sampling and DGA (new transformers <5 years, or if previous DGA showed abnormalities). Annually: Comprehensive oil analysis: Dissolved gas analysis (DGA), Breakdown voltage (>30kV per IEC 60156), Moisture content (<20 ppm for HV transformers), Acidity (<0.03 mg KOH/g), Interfacial tension (>25 mN/m), Power factor/tan delta (<0.5% at 100°C). Bushing power factor test (C1/C2 capacitance, tan delta)--detects moisture ingress or insulation degradation. Insulation resistance (megger test at 5kV)--should be >1000 MΩ for HV winding, >500 MΩ for LV winding. OLTC operation counter check, acoustic monitoring for arcing, contact resistance measurement. Cooling system maintenance: Clean radiators/coolers, check fan/pump bearings, verify flow rates. Protection relay functional testing: Secondary injection to verify settings and operation. Every 2-3 years: Winding resistance measurement (all taps)--deviation <2% between phases indicates balanced windings. Turns ratio test (all taps)--verify within ±0.5% of nameplate. Insulation power factor (tan delta) test--measures insulation quality of windings, bushings, bushings. Frequency response analysis (FRA)--establishes baseline fingerprint for future comparison. OLTC internal inspection (oil-immersed type): Drain diverter switch oil, inspect contacts for wear/pitting, measure contact resistance (<100 μΩ), replace worn contacts, refill with fresh oil. Partial discharge testing (online or offline)--detects insulation degradation before breakdown. Every 5-10 years: Major inspection (requires outage and oil drainage): Internal visual inspection--core, windings, leads, insulation condition. Retighten core and winding clamping bolts (thermal expansion causes loosening). Replace gaskets, inspect tank coating for corrosion. Oil regeneration or replacement if quality degraded beyond restoration. OLTC overhaul (vacuum type): Inspect vacuum interrupters, drive mechanism, control circuits. Replace worn mechanical components. Every 10-15 years: Comprehensive refurbishment: Rewind if insulation severely aged (power factor >2%, low breakdown voltage). Replace bushings if tan delta >0.7% or C2 capacitance changed >10%. Upgrade monitoring systems (online DGA, partial discharge, thermal imaging). Tank repainting, foundation repair. Condition-based maintenance: Implement online monitoring for critical transformers (>50MVA, 220kV class): Continuous DGA, partial discharge, temperature, load current, OLTC operation. Remote alarming via SCADA--enables predictive maintenance based on actual condition vs fixed schedules. Reduces maintenance costs 30-40% while improving reliability. Maintenance records: Document all measurements, oil test results, inspection findings, repairs. Trending analysis identifies degradation patterns--plan interventions before failure. Maintain complete history for asset management and replacement decisions. Critical spares inventory: OLTC contacts, bushings (HV and LV), gaskets, pressure relief valve, temperature sensors, protection relay modules. Lead time for replacement bushings/OLTC can be 6-12 months--stock critical items. Proper maintenance extends transformer life to 35-40 years and prevents 90% of failures--maintenance cost is 1-2% of replacement cost annually but avoids catastrophic failure and extended outages. Establish comprehensive maintenance program from commissioning and maintain rigorous adherence.

Renewable energy integration presents unique challenges for HV transformers: Solar farms: Step-up transformers (typically 35kV/10kV or 110kV/35kV) connect solar inverters to transmission grid. Challenges: Harmonic currents from inverters (THD 3-5%)--specify K-4 rated or harmonic filters. Rapid voltage fluctuations from cloud transients--OLTC with fast response (3-5 seconds). Reverse power flow during high generation--protection relays must handle bidirectional power. Low power factor during low irradiance--specify transformers for 0.8-0.9 PF leading/lagging. Design considerations: Oversized neutral for harmonic currents (150-200% phase conductor). Enhanced cooling for harmonic losses (10-15% derating or forced cooling). Vector group Dyn11 blocks triplen harmonics. Voltage regulation ±10% to ±16% OLTC range to accommodate grid voltage variations. Wind farms: Offshore wind requires specialized marine-grade transformers (66kV/35kV or 220kV/35kV for large farms). Challenges: Highly variable output (0-100% in minutes)--thermal cycling accelerates insulation aging. Harmonic currents from wind turbine converters (similar to solar). Severe environmental conditions (salt fog, high humidity, temperature extremes). Lightning exposure--enhanced surge protection. Design considerations: Hermetically sealed tank prevents moisture ingress. Tropical climate insulation (upgraded creepage distances). Enhanced corrosion protection (epoxy coating, stainless steel hardware). Seismic and wind loading analysis for coastal/offshore installation. OLTC with extended maintenance intervals (vacuum type, 500,000 operations). Online monitoring (DGA, partial discharge, load current) for remote offshore platforms. Grid code compliance: Modern grid codes (IEEE 1547, IEC 61400-21) mandate: Low voltage ride-through (LVRT)--remain connected during grid voltage dips. Frequency ride-through--operate within 47-52 Hz range. Active/reactive power control--support grid voltage and frequency. Fault ride-through--withstand through-faults without tripping. Transformer specifications must support these requirements: OLTC fast response for voltage support. High short-circuit withstand for fault ride-through (25 kA for 1 second typical). Overload capability 120-150% for 2 hours (support grid contingencies). Protection coordination with renewable plant controllers. Parallel operation: Large renewable projects often use multiple transformers in parallel. Requirements: Identical voltage ratio (±0.5%). Impedance matching within ±7.5% (IEC 60076-8). Same vector group (Dyn11 most common). Same OLTC tap position (automatic parallel control). Circulating current monitoring--unequal impedance causes unequal load sharing and overheating. Economic considerations: Renewable transformers operate at lower average load factor (30-40% for solar, 40-50% for wind) vs utility transformers (60-70%). Optimize efficiency at partial load--use amorphous core or low-loss design. Life cycle cost analysis: Higher initial cost for low-loss design recovers through reduced energy losses over 25-year project life. Example: 50MVA transformer, $500k standard vs $650k low-loss. Annual energy savings 150 MWh × $50/MWh = $7,500/year. Payback 20 years--marginal for renewable projects. Commissioning: Perform comprehensive testing: Load flow analysis verifying voltage regulation across load range. Harmonic analysis with inverters/turbines operating--verify THD within limits. Protection coordination testing--simulate grid faults, verify LVRT operation. Thermal performance test--verify temperature rise at rated load and overload conditions. OLTC automatic voltage control tuning--optimize response time and deadband. Future trends: HVDC integration for long-distance renewable transmission--transformers interface AC collection network to HVDC converter stations. Energy storage integration--transformers must handle bidirectional power flow and rapid load changes from battery systems. Consult experienced renewable energy transformer supplier--Wenfei provides specialized designs for solar, wind, and hybrid renewable projects with proven grid code compliance and long-term reliability in harsh environments.

Lead time for high-voltage transformers: Standard designs (35kV, 110kV, common ratings): 8-12 months. Large capacity (>80MVA) or 220kV class: 12-18 months. Custom specifications (non-standard voltages, special requirements): 14-20 months. Fast-track production available for urgent projects (minimum 6 months)--contact sales for feasibility. Lead time includes design, material procurement, manufacturing, testing (routine tests + type tests if required), and factory acceptance testing (FAT) with customer witness. Information required for quotation: 1) Electrical specifications: Capacity (MVA): Total power transfer requirement. Primary voltage (kV) and system configuration (solidly grounded, impedance grounded, isolated neutral). Secondary voltage (kV) and configuration. Tertiary winding if required (for auxiliary power or reactive compensation). Frequency: 50Hz or 60Hz. Vector group: YNyn0d11 (three-winding), YNd11 (two-winding), or specify if different. 2) Impedance and losses: Impedance voltage (%): Specify if non-standard (typical 10-12% for HV transformers). No-load losses and load losses: Specify if efficiency targets required. Sound level: Specify if noise limits apply (typical 65-75 dB(A) at 1m). 3) Tap changer: OLTC or DETC (de-energized tap changer). Tap range: ±10%, ±12.5%, ±16% (specify). Tap steps: 1.25%, 1.5%, 2.5% (17, 21, or 33 positions). Vacuum or oil-immersed OLTC (vacuum recommended for low maintenance). 4) Cooling system: ONAN (oil natural air natural), ONAF (oil natural air forced), OFAF (oil forced air forced). Specify cooling stages if multiple (e.g., ONAN/ONAF with 25% capacity increase). 5) Installation environment: Indoor or outdoor. Altitude (derating required >1000m). Ambient temperature range (standard -25°C to +40°C, specify if extreme). Seismic zone (specify if seismic design required). Pollution level (coastal/industrial areas require enhanced creepage). 6) Protection and monitoring: Standard protection: Buchholz relay, pressure relief, winding/oil temperature indicators. Optional: Online DGA, partial discharge monitoring, bushing monitoring, OLTC acoustic monitoring. SCADA interface requirements (Modbus, IEC 61850, DNP3). 7) Bushings and terminals: Bushing type: Porcelain or composite (RIP/RIS). Terminal configuration: Top-mounted or side-mounted. Cable connection or overhead line connection. 8) Standards and certifications: IEC 60076 (international), IEEE C57.12 (North America), GB 1094 (China), or specific country standards. Type test reports required (short-circuit withstand, temperature rise, impulse, partial discharge). Third-party inspection (if required by customer or financing institution). 9) Transportation and installation: Transformer weight and dimensions (verify site access, bridge/road load limits). Shipping method: Road, rail, sea (specify port of destination). Installation supervision and commissioning support required. 10) Project details: Quantity and delivery schedule. Application (utility substation, industrial plant, renewable energy, mining). Project timeline and critical milestones. Budget constraints or financing requirements. Additional services: Load flow analysis and short-circuit studies. Protection coordination and relay settings. Spare parts supply (bushings, OLTC contacts, gaskets, oil). Training for operations and maintenance personnel. Extended warranty options (standard 2 years, extended to 5-10 years available). On-site commissioning and performance testing. Our engineering team will review your requirements and provide: Detailed technical specification with single-line diagram. Outline drawing showing dimensions, weights, clearances, foundation loads. Complete quotation including transformer, accessories, testing, shipping, and optional services. Compliance matrix demonstrating conformance to specified standards and grid codes. For complex projects, we offer free consultation including: System analysis and transformer sizing. Vector group selection and grounding recommendations. Protection scheme design and coordination studies. Life cycle cost analysis comparing design options. Contact us with your project requirements--our experienced application engineers will develop optimized solution for your transmission or distribution network.
