Single-phase Transformers
Precision-engineered single-phase transformers for residential, commercial and light industrial applications.
Compact, efficient single-phase transformers delivering reliable power conversion from 50VA to 50kVA. Designed for 50/60Hz systems with voltage ratings from 110V to 480V, featuring copper or aluminum windings, epoxy resin encapsulation, and comprehensive overload protection for lighting, electronics, and single-phase motor applications.
Quick Navigation
Select a section to explore
Application
Sectors
Versatile single-phase power solutions for diverse residential, commercial and light industrial environments
Residential
Household appliances
Lighting
LED & halogen lamps
HVAC
Air conditioning units
Office
Computers & printers
Retail
Shop lighting & POS
Automation
Control panels
Medical
Diagnostic equipment
Power Tools
Workshop equipment
Product
Series
Comprehensive range of single-phase transformers for diverse power conversion requirements
Single-phase Transformers
Precision-engineered single-phase transformer designed for reliable power conversion in residential and light commercial applications.
Capacity
Calculator
Determine the optimal single-phase transformer capacity for your application
Based on your requirements, we recommend the above single-phase transformer capacity. Contact our technical team for detailed specifications and customization options.
Get Custom Quote
Client
Testimonials
Real-world performance in critical applications
Frequently Asked
Questions
Technical answers to common inquiries about single-phase transformers
What is the difference between step-down and isolation transformers?
How do I calculate the required transformer capacity for my equipment?
Can I use a single-phase transformer for three-phase equipment?
What is the difference between auto-transformers and isolation transformers?
How much voltage drop should I expect under load?
Do single-phase transformers require regular maintenance?
What safety certifications should I look for?
What is the typical lead time and warranty coverage?
Technical
Reference
Comprehensive technical reference for single-phase transformers
What Are Single-Phase Transformers?
Single-phase transformers are electrical devices that convert alternating current (AC) from one voltage level to another using electromagnetic induction in a single-phase power system. Unlike three-phase transformers designed for industrial high-power applications, single-phase units serve residential, commercial, and light industrial loads typically ranging from 50VA to 50kVA. They step voltage up or down (e.g., 220V to 110V) or provide electrical isolation at the same voltage (220V/220V) for equipment protection, noise filtering, and safety compliance.
Core Technologies & Construction
Core Design
High-grade cold-rolled grain-oriented (CRGO) silicon steel laminations, 0.27-0.35mm thickness. EI-type core for small units (< 5kVA), toroidal core for premium audio/medical applications, C-core for compact designs. Lamination stacking minimizes eddy current losses. Core loss typically 0.8-1.2 W/kg at 1.5T, 50/60Hz operation.
Winding Technology
Concentric or sandwich winding configurations. Copper wire (99.95% purity) or aluminum for cost-sensitive applications. Class F (155°C) or Class H (180°C) insulation. Layer winding for low voltage, sectional winding for higher voltages. Proper interlayer insulation and spacing ensure high breakdown voltage and low partial discharge.
Insulation Systems
Polyester film, Nomex paper, or glass fiber tape between layers. Epoxy resin vacuum impregnation for enhanced moisture resistance and mechanical strength. Insulation withstand voltage: 2000-3000V AC for 1 minute (routine test). Creepage and clearance distances per IEC 61558 safety requirements.
Enclosure & Cooling
Natural air cooling (AN) for most units. Steel or aluminum enclosures with ventilation slots. Powder-coated finish for corrosion resistance. IP20 (finger-safe terminals) standard, IP44/IP54 available for harsh environments. Temperature rise: 80-100K above ambient (40°C max). Thermal protection (thermal fuse or bimetallic switch) for critical applications.

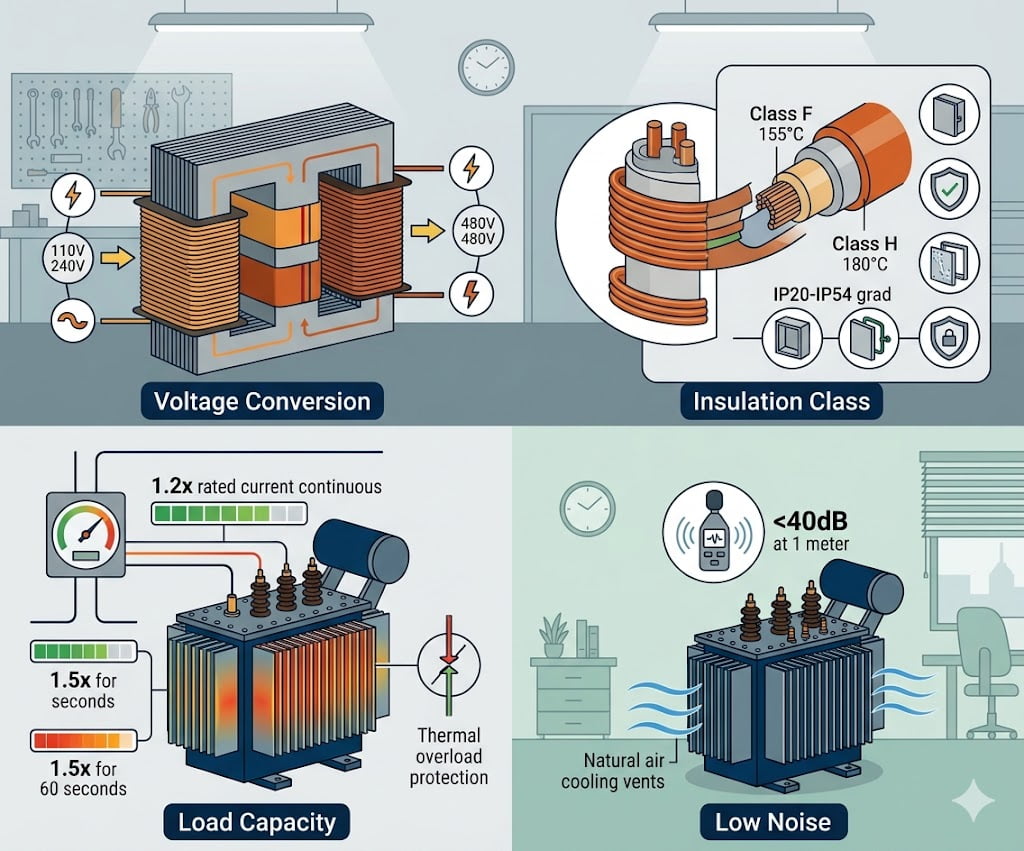

Technical Specifications
| Parameter | Step-Down | Isolation | Auto-Transformer |
|---|---|---|---|
| Capacity Range | 100VA - 30kVA | 50VA - 20kVA | 500VA - 50kVA |
| Common Voltages | 220V/110V, 240V/120V | 220V/220V, 110V/110V | 220V/240V, 110V/120V |
| Efficiency | > 96% | > 97% | > 98% |
| Voltage Regulation | 3-5% | 2-4% | 1-3% |
| Insulation Class | F (155°C) | F / H (155°C / 180°C) | F (155°C) |
| Electrical Isolation | Yes (2500V) | Yes (2500-4000V) | No (Common) |
| Typical Applications | Imported equipment, voltage conversion | Medical, audio, test equipment | Voltage matching, lighting |
| Relative Cost | Medium | Medium-High | Low |
Selection Guidelines
1. Determine Voltage Requirements
Identify input voltage available (check electrical panel or utility specifications) and required output voltage for your equipment (check equipment nameplate). Common scenarios: Operating 110V US equipment in 220V countries (step-down 220V/110V). Operating 220V European equipment in 110V regions (step-up 110V/220V). Voltage matching for slight differences (220V/240V, 110V/120V)--use auto-transformer for efficiency. Electrical isolation for sensitive equipment--use isolation transformer with equal input/output voltages.
2. Calculate Required Capacity
Add wattage of all equipment to be powered simultaneously. For resistive loads (heaters, incandescent bulbs, some electronics): VA = Watts × 1.0. For inductive loads (motors, transformers, fluorescent lights): VA = Watts ÷ 0.7-0.8 (power factor). For capacitive loads (some power supplies, LED drivers): VA = Watts ÷ 0.9. Add 20-30% safety margin for inrush current and component aging. For motor loads, multiply rated power by 3-5× to handle starting surge. Round up to next standard capacity. Use our calculator above for quick estimates or contact engineering for complex load profiles.
3. Choose Transformer Type
Step-down/step-up: For voltage conversion where isolation is not critical. Most common for general equipment operation. Isolation transformer: When electrical isolation is required--medical equipment (patient safety), audio systems (ground loop elimination), test/measurement equipment (noise filtering), computer/server rooms (surge protection). Auto-transformer: For small voltage differences (< 20%) where isolation is not needed. More efficient and compact but no safety isolation. Toroidal core: Premium option for audio, medical, laboratory applications--ultra-low noise, high efficiency, compact size. EI-core: Standard industrial/commercial applications--good balance of performance and cost.
4. Environmental & Installation Considerations
Location: Indoor dry location (IP20 adequate). Damp/humid areas (IP44 minimum). Outdoor covered (weatherproof enclosure). Mounting: Floor/wall mounting options available. Ensure adequate ventilation clearance (150mm minimum all sides). Ambient temperature: Standard rating for 40°C ambient. Higher temperatures require derating (consult factory). Noise level: Standard units 40-50 dB(A). Low-noise designs (toroidal, special core materials) available for noise-sensitive environments. Altitude: Standard rating up to 1000m. Higher altitudes require derating due to reduced cooling efficiency. Protection: Built-in thermal protection recommended for unattended operation. External circuit breaker or fuse required per local electrical codes.
Installation Best Practices
- 1. Location & Mounting: Install in well-ventilated area away from heat sources, moisture, flammable materials. Maintain minimum clearances: 150mm sides/rear, 300mm front (access), 500mm top. Mount on non-combustible surface (concrete, metal). Use vibration isolation pads if noise is concern. Ensure mounting surface can support transformer weight plus 50% (safety factor). For wall mounting, use appropriate anchors rated for load.
- 2. Electrical Connections: Use wire gauge per local electrical code and transformer terminal size. Typical: 14 AWG (2.5mm²) for < 2kVA, 12 AWG (4mm²) for 2-5kVA, 10 AWG (6mm²) for 5-10kVA. Strip wire 10-12mm, use crimp terminals or ring lugs. Torque terminal screws: 1.5-2.5 Nm (M4), 3-5 Nm (M5), 5-8 Nm (M6). Do not over-torque--can damage terminals. Verify correct polarity: Line (L), Neutral (N), Ground (G/PE). Use cable glands or strain relief for cable entry. Label all connections clearly.
- 3. Grounding & Safety: Connect transformer frame/enclosure to facility ground using minimum 14 AWG (2.5mm²) copper wire. Ground connection must be tight, corrosion-free. For isolation transformers, do NOT bond secondary neutral to ground at transformer--maintain isolation. Bond at main panel only. Install appropriate overcurrent protection: Primary side fuse/breaker rated 125-150% transformer full-load current. Secondary side protection per load requirements. Ground fault protection (GFCI/RCD) recommended for medical, outdoor, damp locations.
- 4. Testing & Commissioning: Before energizing: Visual inspection--no shipping damage, connections tight, no foreign objects inside enclosure. Megger test: 500V DC between windings and ground, reading should be > 100 MΩ (new), > 10 MΩ (in-service). Continuity test: Verify primary and secondary winding continuity with multimeter. After energizing (no load): Measure input voltage at transformer terminals. Measure output voltage--should be within ±5% of nameplate rating. Listen for abnormal noise (buzzing, rattling). Check for excessive temperature rise after 30 minutes (should be warm but not too hot to touch). Under load: Measure output voltage at 25%, 50%, 75%, 100% load. Verify voltage regulation within acceptable range. Monitor temperature--should stabilize below rated temperature rise.
- 5. Common Installation Mistakes to Avoid: Undersizing transformer--always include safety margin and consider inrush current. Poor ventilation--blocking air vents causes overheating and premature failure. Incorrect grounding--especially critical for isolation transformers. Bonding secondary neutral to ground defeats isolation. Overloading--continuous operation above 80% rated capacity significantly reduces lifespan. Using aluminum wire with copper terminals--causes galvanic corrosion. Use anti-oxidant compound or specify aluminum-compatible terminals. Inadequate overcurrent protection--can lead to fire hazard in fault conditions. Ignoring ambient temperature--transformers derate at high ambient temperatures (> 40°C).
Troubleshooting Guide
Problem: No Output Voltage
Possible Causes:
- No input voltage--check supply breaker/fuse
- Primary fuse blown--check for overload or short circuit
- Internal thermal protection tripped--allow cooling, check for overload
- Loose connection--verify all terminal connections tight
- Open winding (rare)--measure winding resistance with multimeter
Solution: Verify input voltage present. Check and replace blown fuses. Allow thermal protection to reset (15-30 minutes). Retighten all connections. If winding open, transformer requires professional repair or replacement.
Problem: Low Output Voltage
Possible Causes:
- Low input voltage--measure at transformer terminals
- Overloading--exceeding rated capacity
- Excessive cable voltage drop--long cable runs or undersized wire
- Poor connections--high resistance at terminals
- Transformer undersized for load
Solution: Measure input voltage (should be within ±10% nominal). Reduce load or install larger transformer. Increase cable size or shorten runs. Clean and retighten all connections. Calculate actual load and verify transformer capacity adequate with 20-30% margin.
Problem: Excessive Heat / Overheating
Possible Causes:
- Overloading--operating above rated capacity
- Poor ventilation--blocked air vents or inadequate clearance
- High ambient temperature (> 40°C)
- Harmonic loads--non-linear loads causing additional heating
- Internal fault--shorted turns (rare)
Solution: Measure load current and verify not exceeding nameplate rating. Ensure ventilation openings clear, minimum clearances maintained. Improve ventilation or relocate to cooler area. For harmonic loads, derate transformer or specify K-rated unit. If overheating persists at normal load, consult manufacturer--may indicate internal fault.
Problem: Loud Buzzing / Humming Noise
Possible Causes:
- Loose core laminations--normal aging or shipping damage
- Mounting resonance--transformer vibration transmitted to mounting surface
- Overvoltage--input voltage too high
- DC component in supply--rare, causes core saturation
- Loose mounting bolts--allows vibration
Solution: Verify input voltage within specification (±10%). Tighten mounting bolts. Install vibration isolation pads between transformer and mounting surface. If noise suddenly increased, may indicate loose core--professional inspection recommended. For new installations in noise-sensitive areas, specify low-noise toroidal core design.
Why Choose Wenfei?
Wenfei Electrical specializes in precision single-phase transformers for residential, commercial, and professional applications. Our manufacturing facility in Liushi, Wenzhou employs advanced CNC winding machines, vacuum impregnation systems, and automated testing equipment to ensure consistent quality. Every transformer undergoes 100% factory testing including no-load voltage, load regulation, insulation resistance, and hipot testing per IEC 61558 safety standards.
Our engineering team provides application support for voltage conversion, isolation requirements, and capacity sizing. We offer custom voltage configurations, multiple tap options, and special features (thermal protection, low-noise design, medical-grade isolation) to meet specific customer requirements. With ISO 9001:2015 certification, CE compliance, and RoHS conformity, Wenfei single-phase transformers deliver reliable performance for imported equipment operation, sensitive electronics protection, and professional audio/medical applications worldwide.
