Voltage Regulators
Stabilize power supply and protect sensitive equipment from voltage fluctuations.
Automatic tap-changing mechanism with microprocessor control. Engineered for critical applications requiring precise voltage regulation, wide input range tolerance, and rapid response to grid instability.
Quick Navigation
Select a section to explore
Application
Sectors
Critical voltage stabilization for sensitive equipment and unstable grid conditions
CNC Machining
Precision manufacturing
Data Centers
Server protection
Medical
Life-support systems
Telecom
Network infrastructure
Commercial
Office buildings
Broadcasting
Transmission equipment
Renewable
Solar & wind systems
Laboratories
Testing equipment
Product
Lineup
Comprehensive range of voltage regulators for diverse power stabilization needs
Servo Motor Type
Servo-controlled automatic voltage regulation, ultra-fast response, ideal for precision equipment and fluctuating loads
Contactless Type
No mechanical wear, maintenance-free operation, microprocessor-controlled for long-term reliability
Three-Phase Type
Independent phase regulation, balanced output, engineered for heavy industrial loads and asymmetric conditions
Capacity
Calculator
Determine the optimal transformer capacity for your application
Based on your requirements, we recommend the above voltage regulator capacity. Contact our technical team for detailed specifications and customization options.
Get Custom Quote
Client
Testimonials
Trusted by industry leaders worldwide
Frequently Asked
Questions
Technical answers to common inquiries about voltage regulators
What is the difference between servo motor and contactless voltage regulators?
How do I calculate the required voltage regulator capacity?
Can voltage regulators protect against power surges and spikes?
What certifications do Wenfei voltage regulators have?
How often do voltage regulators require maintenance?
What is the typical lead time and warranty coverage?
Can regulators be used with generators or solar inverters?
Do you provide installation and commissioning support?
The Definitive
Guide
Comprehensive technical reference for voltage regulators
What Are Voltage Regulators?
Voltage regulators are automatic electrical devices designed to maintain a constant output voltage despite fluctuations in input voltage or load current. They protect sensitive equipment from damage caused by over-voltage, under-voltage, and voltage instability--critical issues in regions with unreliable power grids or when operating precision machinery that requires stable voltage supply.
Core Technologies
Servo Motor Control
Precision servo motors drive variable transformers (variacs) to adjust voltage in real-time. Microprocessor monitoring ensures ±1% accuracy with response times under 20 milliseconds. Carbon brush contact system provides smooth, continuous voltage adjustment across the full input range.
Contactless Switching
Electronic tap-changing using solid-state relays or IGBTs eliminates mechanical wear. Microprocessor-controlled switching between transformer taps provides maintenance-free operation. No carbon brushes or moving contacts mean longer lifespan in harsh environments.
Three-Phase Balance
Independent regulation of each phase compensates for asymmetric loads and unbalanced input voltages. Phase-by-phase monitoring and correction maintain balanced output even when input phases vary by up to 10%. Essential for three-phase motors and industrial equipment.
Protection Systems

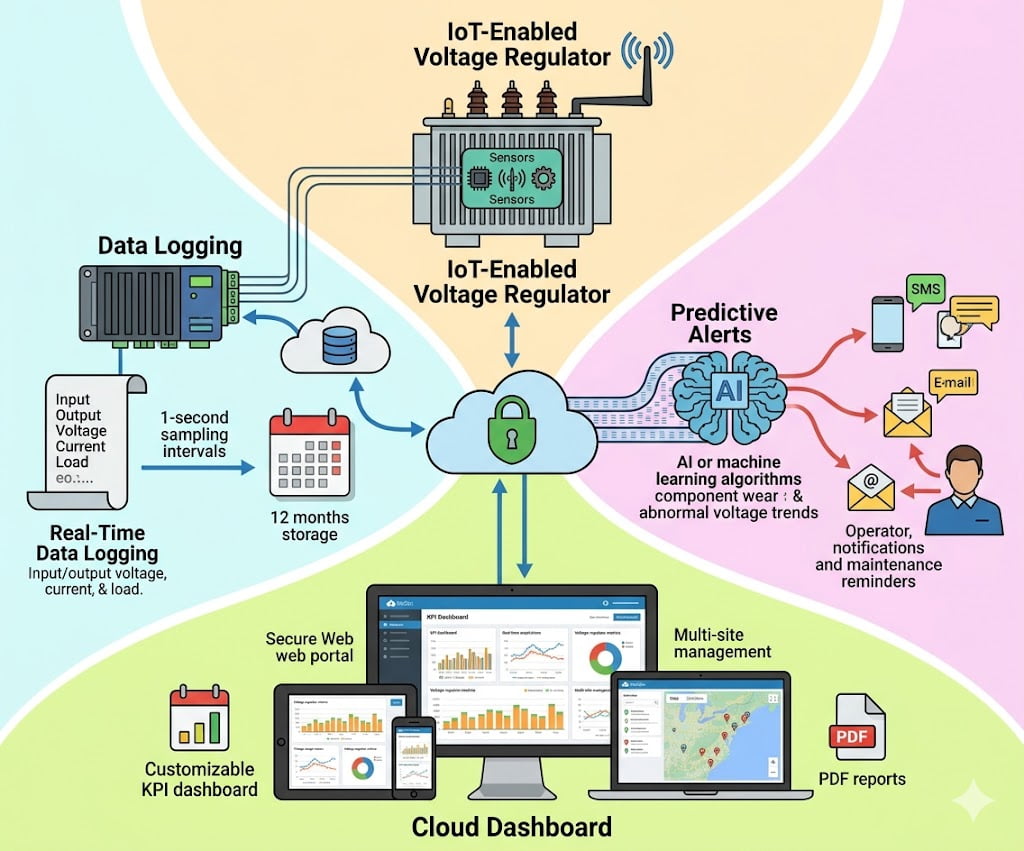

Multi-layer protection including overload detection, short-circuit interruption, over-temperature shutdown, and input over/under voltage bypass. Automatic fault diagnosis with LED/LCD display. Optional remote monitoring via RS485 or Ethernet interface.
Technical Specifications
| Parameter | Servo Motor Type | Contactless Type | Three-Phase Type |
|---|---|---|---|
| Capacity Range | 0.5-3000 kVA | 5-1000 kVA | 10-3000 kVA |
| Input Voltage Range | ±20% ~ ±30% | ±15% ~ ±25% | ±20% ~ ±30% |
| Output Accuracy | ±1% | ±2% | ±1.5% |
| Response Time | < 0.02s | < 0.05s | < 0.03s |
| Efficiency | > 98% | > 98% | > 97% |
| Waveform Distortion | < 3% | < 2% | < 3% |
| Operating Temperature | -10°C to 40°C | -10°C to 45°C | -10°C to 40°C |
| Protection Class | IP20-IP54 | IP20-IP44 | IP20-IP54 |
Selection Guidelines
1. Assess Voltage Fluctuation Range
Measure input voltage over 24-48 hours to determine maximum deviation from nominal voltage. Use a power quality analyzer or data logger. If fluctuations exceed ±15%, select a wide-range regulator (±20-30% models). For stable grids with minor fluctuations (< ±10%), standard ±15% models suffice.
2. Calculate Total Load Capacity
Sum all connected loads in kW, convert to kVA using power factor, apply load factor (typically 0.7-0.8), and add safety margin (1.15-1.3× depending on criticality). Formula: Required kVA = (Total kW ÷ PF) × Load Factor × Safety Factor. For precision equipment, use 1.25-1.3× safety factor. For general loads, 1.15-1.2× is adequate.
3. Choose Technology Type
Servo Motor: Best for precision applications requiring ±1% accuracy (CNC, medical, laboratories). Requires periodic brush maintenance. Contactless: Ideal for 24/7 operation in harsh environments (telecom towers, outdoor installations). Maintenance-free but ±2% accuracy. Three-Phase: Essential for unbalanced loads or asymmetric input voltages (industrial facilities, mixed loads).
4. Consider Environmental Conditions
Ambient temperature, humidity, dust, and altitude affect performance. Standard ratings assume 40°C ambient and 1000m altitude. For higher temperatures or altitudes, apply derating factors (3% per 10°C above 40°C, 1% per 500m above 1000m). Dusty or corrosive environments require IP54 enclosures. Outdoor installations need weatherproof cabinets.
Installation Best Practices
- 1. Site Preparation: Ensure adequate ventilation clearances (minimum 0.5m on all sides for units up to 500 kVA, 1m for larger units). Verify floor load capacity exceeds unit weight plus 50%. Provide level, vibration-free mounting surface. Ambient temperature must not exceed 40°C.
- 2. Electrical Connections: Use properly sized cables per NEC/IEC standards (cable ampacity ≥ 125% of rated current). Torque terminal connections to manufacturer specifications (typically 8-12 Nm for M8 terminals). Install cable glands with appropriate IP rating. Verify phase sequence before energization.
- 3. Grounding System: Connect regulator frame to building ground grid using minimum 16mm² copper conductor. Ensure ground resistance < 4Ω. Bond neutral point per local electrical codes (TN-S, TN-C-S, or TT systems). Install surge protection devices (Class II SPDs) on input and output sides.
- 4. Protection Devices: Install appropriately rated circuit breakers or fuses on input side (rating = 1.5× regulator rated current). Configure output protection per load requirements. Add time-delay relay if loads include motors (prevent nuisance tripping during startup). For critical loads, implement bypass switch for maintenance.
- 5. Commissioning Tests: Perform insulation resistance test (minimum 1000V megger, reading > 10MΩ). Verify input voltage range and output accuracy using precision multimeter. Check no-load current (< 5% of rated). Conduct load test at 25%, 50%, 75%, and 100% capacity. Monitor temperature rise over 2 hours.
Maintenance Schedule
- • Visual inspection for damage
- • Check for unusual noise
- • Verify ventilation paths clear
- • Monitor input/output voltage
- • Record load levels
- • Thermal imaging scan
- • Clean ventilation openings
- • Inspect electrical connections
- • Test protection devices
- • Check servo motor (if applicable)
- • Insulation resistance test
- • Replace carbon brushes (servo)
- • Voltage accuracy verification
- • Load loss measurement
- • Comprehensive inspection report
Why Choose Wenfei?
Since 2019, Wenfei Electrical has specialized in voltage stabilization technology for critical applications. Our 10,000m² production facility in Liushi, Wenzhou--the heart of China's electrical equipment industry--combines advanced manufacturing with rigorous quality control. Every voltage regulator undergoes 100% factory testing including no-load, full-load, accuracy verification, and temperature rise tests.
Our engineering team provides application-specific design support, helping customers select optimal configurations for their voltage conditions and load profiles. With ISO 9001 certification, CE compliance, and global service network, Wenfei regulators deliver reliable performance in the world's most challenging power environments--from remote telecom towers to precision manufacturing facilities.
